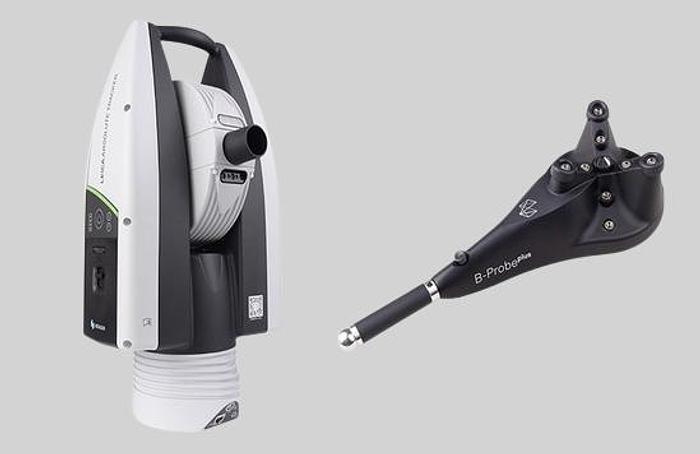

LEICA ABSOLUTE TRACKER AT500

The Leica Absolute Tracker AT500 makes measurement simple without compromising on portability, productivity and resilience. From transport case to large-scale measurement is just a matter of moments thanks to a hassle-free setup process, while IP54-rated protection and an extended operating temperature range keep the AT500 working under even the most challenging conditions. From reflector measurement at up to 160 metres from the tracker to simplified 6DoF probing functionality, the AT500 is ready for every manufacturing and assembly challenge, no matter the size or location.

OVERVIEW

The AT500 is our easiest ever laser tracker. Out of the transport case, power on and you’re ready to measure. There are no cables thanks to the built-in controller and battery power, as well as no levelling or reflector initialisation required. The system runs on two IATA compliant batteries, hot-swappable and offering up to 6 hours of runtime. Measurement is faster too – at a 100 Hz, point collection is 10 times faster than the AT403, while the latest generation of our patented PowerLock automatic targeting system avoids time wasting. The system is also augmented by the new AT500 Connect App, which allows network setup and levelling to be performed on your smart phone or tablet (available for Android and iOS).

FEATURES

All-in-One Integrated Design

From built-in battery-powered controller unit, integrated wireless connectivity, environmental monitoring and all-day battery power, to HD overview camera and ergonomic carry handle, every need is built in.

Single-Box Probing System

Just one case contains the lightest and most portable sensor and probe as well as IR remote, with various transportation case options for full flexibility.

Smart Connectivity

Built-in WiFi with true access-point functionality delivers single-user operation through simple PC setup and remote control.

Bluetooth Control

The AT500 Connect app offers quick settings adjustments over Bluetooth direct from a smartphone or tablet (Android and iOS).

PowerLock

Automatically re-establishes interrupted line of sight within a wide field of view with no user interaction required.

Continuous Measurement

Continuous time and distance measurement mode, with measurement sampling rate at 100 Hz.

Entry-Level Probing

Cableless, battery-powered Leica B-Probeplus with customisable hidden-point capability.

IP54 Certification

The IEC-certified sealed unit guarantees ingress protection against dust and other contaminants, enabling effective measurement in even the harshest environments.

MeteoStation

Integrated environmental unit monitors conditions including temperature, pressure and humidity to compensate for changes and ensure accurate measurements regardless of external factors.

Orient-to-Gravity

Enables measurement with the Z-axis aligned to gravity, ideal for levelling and alignment tasks.

Battery Power

Independent hot-swappable battery power supply allows for quick and easy cable-free setup and all-day wireless operation.

Operating Temperature

Wide operating temperature range of -15 to +50° Celsius.

Measurement Volume

Ultra-large measurement volume of up to 320 metres (ø), with minimum measurement distance less than 0.8 metres.

Hexagon Guarantee

Full 24-month factory warranty and guaranteed ten years of serviceability.

Real-Time Asset Management

The AT500 is fully compatible with HxGN SFx | Asset Management, the leading solution for asset performance management in the world of Industry 4.0. Based on data collected in real-time and reported through a centralised user-friendly dashboard, SFx Asset Management has been optimised for the management of laser tracker-based systems and is an essential part of every smart manufacturing strategy.

Every AT500 system comes with a bundled SFx Asset Management PRO licence, valid for as long as the device remains within factory warranty.

Bundled Software

Every Absolute Tracker comes packaged with a free first-year licence for Hexagon’s leading metrology software, Inspire.
